Frame additional weight for single-network units
suitable for underframes for single-network units with 25 / 34 / 45 / 55 cm diameter.
The frame is inserted into the frame and a standard concrete slab
500 x 500 mm is inserted into the frame.
The frame is supplied without a concrete slab!
Newly developed net cutter DIWA "Secur" (Fix`nSafe), fast blade change
tool-free blade change with plastic blade holder in red warning colour.
red warning colour. Injury-proof, as the blades are embedded on both sides.
both sides. Inside there is a spare blade ready to hand, which fits almost every
fits almost every power pack.
Technical data
- Basic holder made of galvanised metal
- 2-part net cutter made of POM (polyoxymethylene) recycled plastic
Material
- 2 professional industrial blades
- Fixing screws for all common net cutters
(2 screws M5 with stop nut, 1 screw M10 with 2 washers
and stop nut)
To replace the spare blade embedded inside, pull the red plastic part out of the metal shaft and plastic part is pulled out of the metal shaft and opened by turning it slightly.
opened by turning it slightly.
Attachment kit for mains units
This makes year-round use possible for netters. You can also use your wetting device to net shrubs and nursery stock. The strong funnel angle makes it easy to net pot-grown plants or balled plants.
Safety cutter made of impact-resistant ABS plastic. No contact with the blade, as it is embedded in the cutter head to prevent injury.
Blade protection on a safety strap. Blade made of stainless steel.
Possible uses: Opening the nets on the tree, cutting off the net.
Colour black/red
First net the tree, then wrap it in foil for clean transport. Can be used on any standard Christmas tree packaging unit 45cm ø.
Breathable special foil made of polyethylene in the colours red or green. This film is 100 % recyclable. Despite the breathable film, the Christmas tree should be unpacked immediately after transport. The product is to be used exclusively for the transport of Christmas trees.
Length: 125 m
Additional: 100 cable ties
First net the tree, then pack it in LongoPac Bio for clean transport. Can be used on any standard Christmas tree wrapper 45cm ø.Despite the breathable film, the Christmas tree should be unpacked immediately after transport. The product is to be used exclusively for the transport of Christmas trees.LongoPac Bio is made from organic material, (EN 13432:2000-12),the basic material is based on polysaccharides.This material decomposes at 23°C within 6 months.Length: 110 m

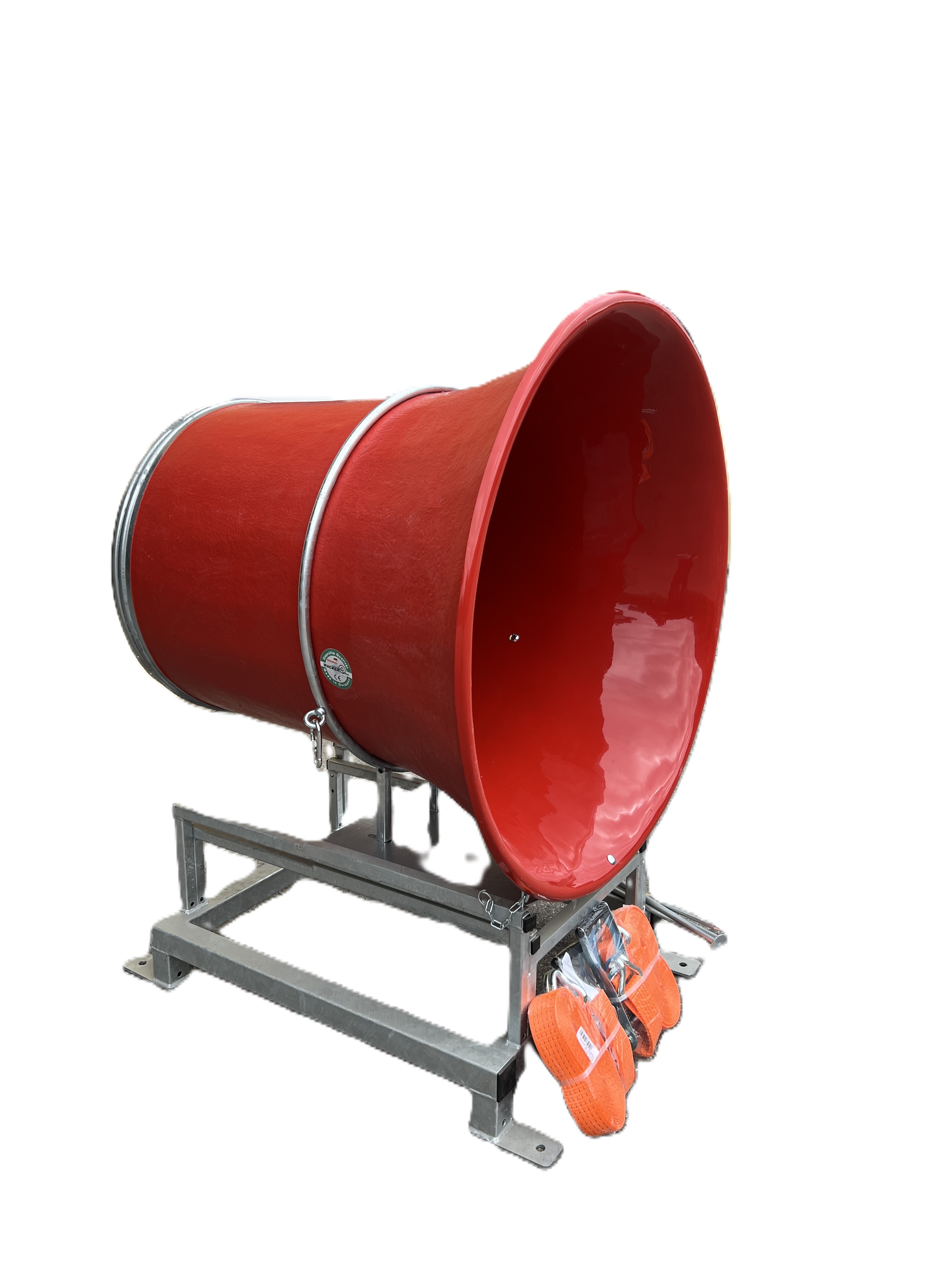

Very robust netting device. The smooth transition from the funnel to the net tube allows trees to be netted with much less effort.Reinforced design with solid bracket. The triple-welded holder ring is screwed to the base plate and the funnel.Material: glass fibre reinforced plasticDiameter: 25 cm, 34 cm, 45 cm, 55 cm, 65 cm incl. base, scraper ring, brake rubber

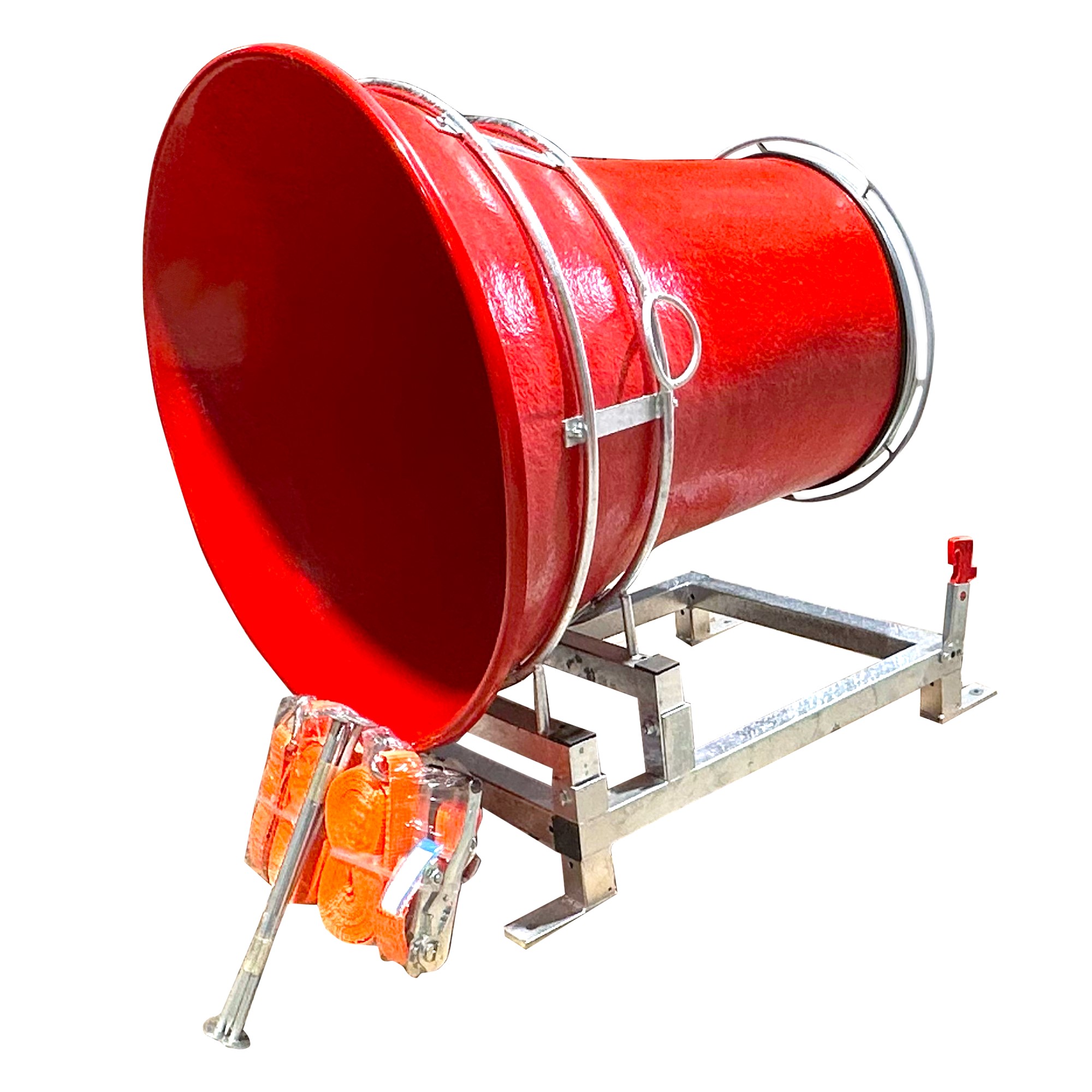

Very robust netting unit. The smooth transition from the funnel to the net tube allows trees to be netted with much less effort.Reinforced version with solid mounting. The triple-weldedThe triple-welded mounting ring is screwed to the base plate and the funnel.Material: glass fibre reinforced plasticDiameter: 55 cm, 65 cm incl. base, scraper ring, brake rubber, 4 ground pegs and 2 lashing straps,Diameter: 90 cm incl. foot, scraper ring, brake rubber, 4 ground pegs and 4 lashing straps.
Tried and tested power pack with funnel made of galvanised sheet steel.
incl. foot, scraper ring and brake rubber.
Diameter: 25 cm, 34 cm, 45 cm, 55 cmMaterial: sheet steel
Tried and tested power pack with funnel made of galvanised sheet steel incl. foot, scraper ring and brake rubber and frame extension.This makes it possible to use the power pack all year round. You can also use your wetting device for wetting shrubs and nursery stock. The strong funnel angle makes it easy to net pot-grown plants or balled plants.Diameter: 25 cmMaterial: sheet steel
Tried and tested power pack with funnel made of galvanised sheet steel incl. foot, scraper ring and brake rubber and frame extension.This makes it possible to use the power pack all year round. You can also use your wetting device for wetting shrubs and nursery stock. The strong funnel angle makes it easy to net pot-grown plants or balled plants.Diameter: 34 cmMaterial: sheet steel
